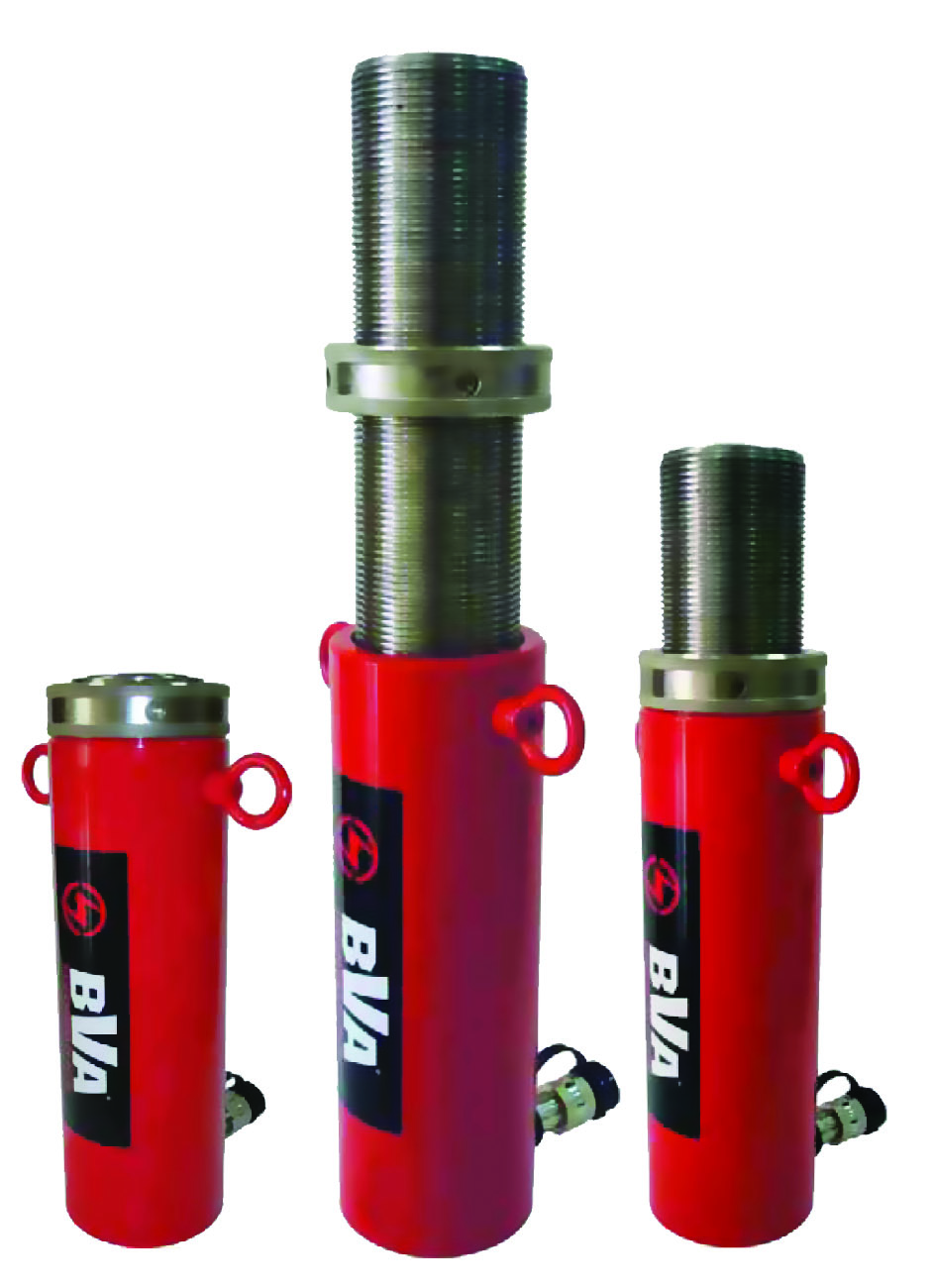

Lock Nut

  • Can support the load for a long period.
  • The lock nut can be screwed wherever the operator wants and this ensures it is absolute safety to work under the load.
  • Ram and the housing inside of cylinder are nickel plated to prevent rust and corrosion.
  • Can support the load for a long period.
  • The lock nut can be screwed wherever the operator wants and this ensures it is absolute safety to work under the load.
  • Ram and the housing inside of cylinder are nickel plated to prevent rust and corrosion.

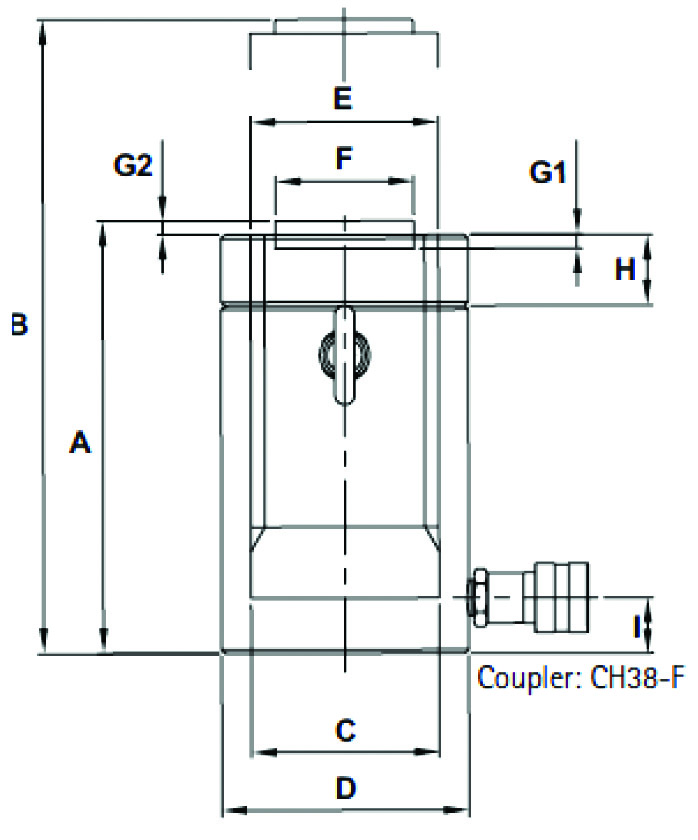

Model Number Stroke А  В  Oil Capacity Weight
Min. Height Max. Height
(mm)  (mm)  (mm)  (cc)  (Kg)
Cylinder Capacity: 50 Ton = 496 kN (Incl. 2 Lifting Eyes)
HLN5502   50 164 214 354 15,4
HLN5504   100 214 314 709 20,2
HLN5506   150 264 414 1063 25
HLN5508   200 314 514 1418 29,9
HLN5510   250 364 614 1772 34.7
HLN5512   300 414 714 2127 39.5
Cylinder Capacity: 100 Ton= 929 kN (Incl. 2 Lifting Eyes)
HLN10002   50 187 237 663 30,5
HLN10004   100 237 337 1327 38.9
HLN10006   150 287 437 1990 47.3
HLN10008   200 337 537 2654 55.6
HLN10010   250 387 637 3317 64.0
HLN10012   300 437 737 3981 72.4
