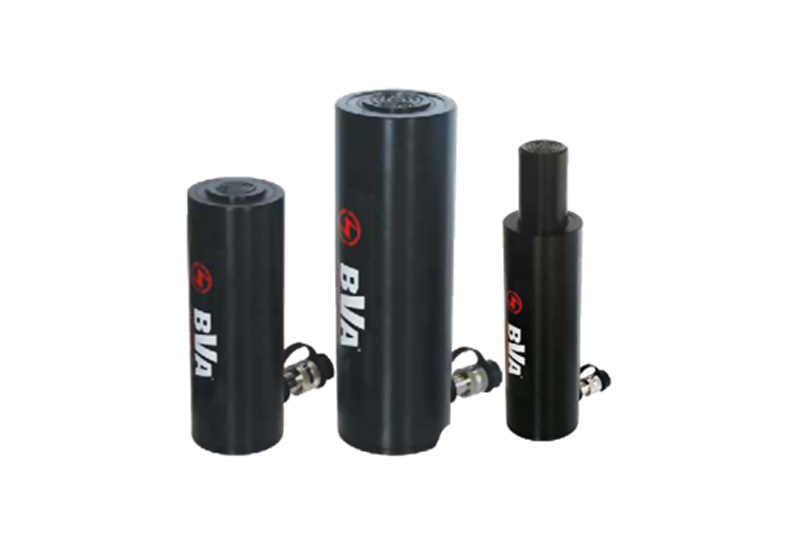

Aluminium

Heavy Duty spring return for quicker retraction.
Light weight for easy handling.
Hard anodized surface.

Model Number Stroke A  B  Oil Capacity Weight
Min. Height  Max. Height
(mm)  (mm)  (mm)  (cc)  (Kg)
Cylinder Capacity: 20 Ton= 218 kN
HU2002   50 174 224 155 3
HU2004   100 224 324 311 3,7
HU2006   150 274 424 467 4,4
Cylinder Capacity: 30 Ton = 309 kN
НU3002   50 181 231 220 4,7
НU3004   100 231 331 441 5,4
НU3006   150 281 431 662 6,1
Cylinder Capacity: 50 Ton = 496kN
HU5502   50 186 236 354 7,6
HU5504   100 236 336 708 9,1
HU5506   150 286 436 1063 10,7
HU5508   200 336 536 1417 12,3
HU5510   250 386 636 1772 14
Cylinder Capacity: 100 Ton = 929 kN
HU10004   100 271 371 1327 19,8
HU10006   150 321 471 1990 22,1
HU10008   200 371 571 2654 24,4
Cylinder Capacity: 150 Ton = 1589kN
HU15006   150 343 493 3404 33.5

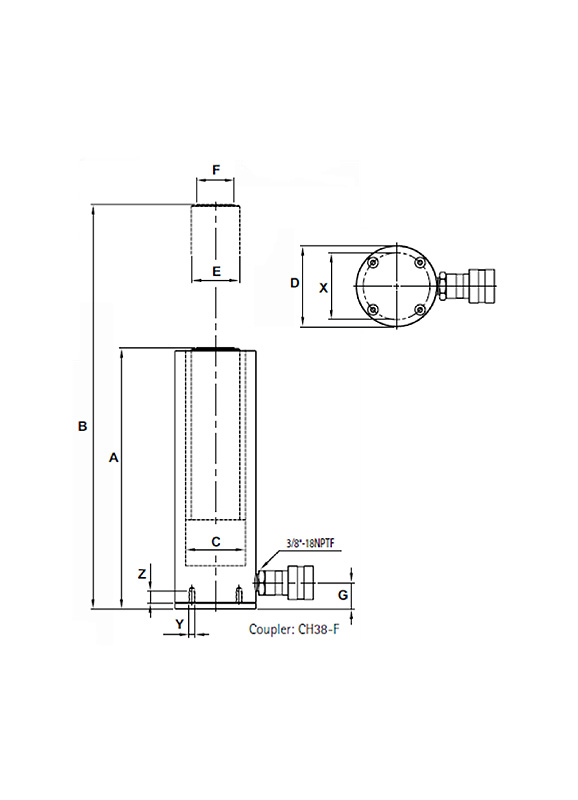

Model Number  Capacity
 (kN) 		 Cylinder Effective Area  С  D  Е  F  G  X  Y  Z
Bore Diameter Outside Diameter  Plunger Saddle Diameter Base to Inlet Port Base Mounting Hole
Pitch Diameter Thread Thread Depth
(cm2 )  (mm)  (mm)  (mm)  (mm)  (mm)  (mm)  (mm)  (mm)
20 Ton 218 31.17   63 85 50.8   39.5   27,5 70 M6 12
30 Ton 309 44.18   75 100 60 39.5   33.5   80 M6 12
50 Ton 496 70.88   95 130 80 70 30,5 110 M6 12
100 Ton 929 132.73   130 180 109.9   70 46.5   160 M6 12
150 Ton 1589 226.98   170 230 140 113 51.5   200 M6 12
