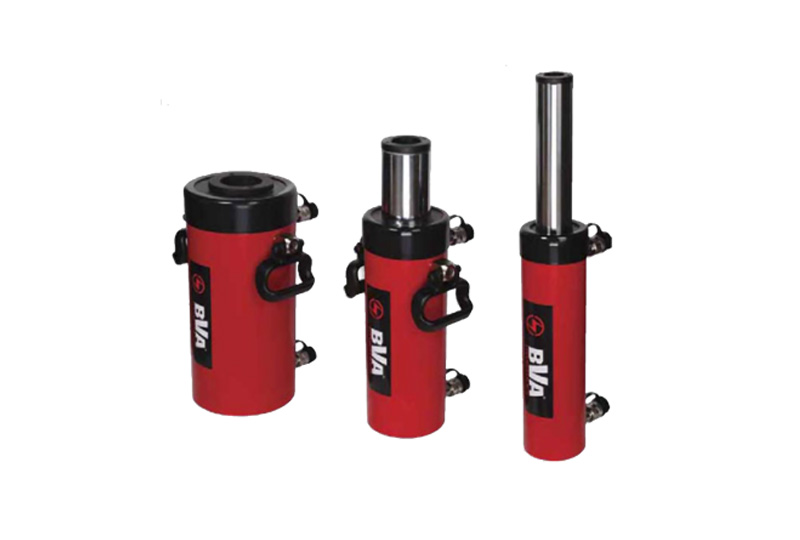

Double Acting Hollow

  • Dual Plunger wipers help prevent contamination.
  • Collar thread for easy fixation.
  • High flow coupler with dust cap.


Model Number Stroke A В  Oil Capacity Capacity L Weight
Min. Height Max. Height Push Pull Push Pull Top to Inlet Port
(mm)  (mm) (mm)  (cc)  (cc)  (kN) (kN) (mm) (Kg)
Cylinder Capacity: Push 30 Ton & Pull 18 Ton
HDC3007 177 331 508 725 455 286 179 60,5 19,5
HDC3010   257 432 689 1049 658 286 179 60.5   24,9
Cylinder Capacity: Push 60 Ton & Pull 40 Ton
HDC6003   89 248 337 641 428 589 394 67.0   29,8
HDC6006   165 324 489 1282 856 589 394 67.0   36.8
HDC6010   257 438 695 2164 1444 589 394 67.0   31.2
Cylinder Capacity: Push 100 Ton & Pull 65 Ton
HDC10001   38 165 203 544 347 1001 638 44.5   33.4
HDC10003   76 254 330 1087 693 1001 638 86.0   52.7
HDC10006   152 343 495 2178 1388 1001 638 86.0   68.5
HDC10010   257 461 718 3678 2345 1001 638 86.0   96.8

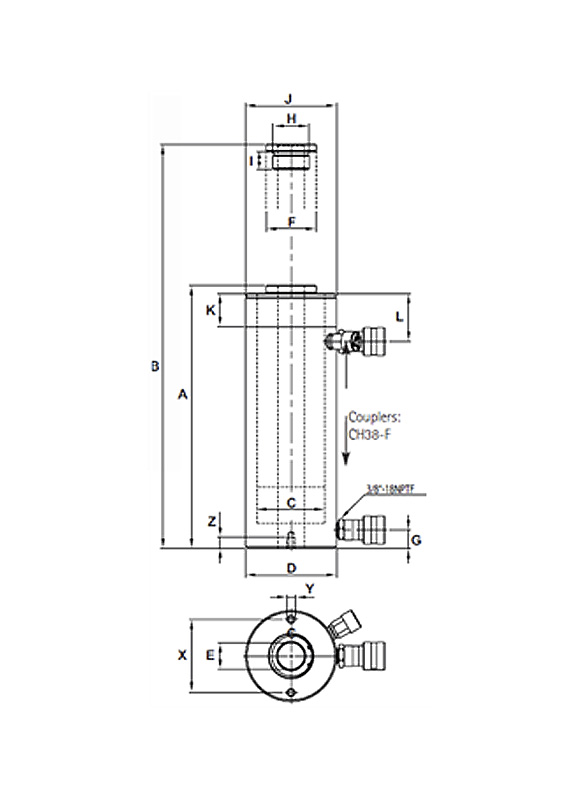

Model
Number		 Cylinder Effective
Area		 C D E F G H I J  К  X  Y  Z
Push Pull Bore Diametr Outside Diametr Plunger Collar Thread Base Mouning Hole
Inside Diametr Outside
Diametr		 Base to Inlet Port Internal Thread Internal Trhead Length Diametr Lenght Bolt Circle Thread Thread Depth
(cm2)  (cm2)  (mm) (mm) (mm) (mm) (mm) (mm) (mm)  (mm)  (mm)
30 Ton  41 26 85 114 33 63 23 1 13/16”-
 16UN  		 17 4 1/2”-12   42.2   92 3/8”-
 16UNC  		 14
60 Ton  84 56 125 159 54 92 27 2 3/4”-
 16UN  		 17 6 1/4”-12   48.5   130 1/2”-
 12UNC  		 14
100 Ton 143 91 165 213 79 125 27 4”-16UN   21 8 3/8”-12   60.5   178 5/8”-
 11UNC  		 19
